OZROO TUB RACK for Ford Courier (1996-2006)

Want more storage and to maintain use of your ute tub? Want to run a roof rack and a tub rack? Need a spot to mount your awning or roof top tent? Have too much gear for the back of the ute? Load up for your next trip or adventure with the OzRoo Tub Rack!

The OzRoo Tub Racks are constructed from high tensile, reinforced steel and are finished in multistage powder coat to offer the ultimate in utility, durability, functionality and appearance!

Designed specifically for the Australian Ute, they are supplied complete with all fitting accessories, and offer easy direct mount fitment, and these market leading features Easy DIY direct mount install OZROO Unique 'feet' design to allow mounting flat or direct to tub wall. Internal cross member bars for extra support and load carrying capacity Modular height and width to ensure perfect fitment on most Utes Black powder coated for longer durability High quality stainless steel hardware and allen key for easy installation High quality LED lights installed ready for extra reversing or camp lights
	RATED TO 400kgs - PERFECT FOR A ROOF TOP TENT! Canyon Offroad took the next step with these tub racks. Engineered, designed and tested in factory and the wild, then retested again! These racks have benefited from the years of 4WD enthusiasts like YOU testing them, feeding back and making millions of changes that other racks wont have! Further, these are backed by our fuss free warranty, if you manage to break it, we will replace it! STRUCTURAL ENGINEERING REPORT CAN BE FOUND HERE.
These versatile racks, accept most popular accessories, including Tents, awnings, hi-lift jacks, spare wheels, jerry cans and more. Uniquely designed for Australian conditions, with class leading strength and protection, all covered by our fuss free two year warranty. Tub Racks are simply one of the best 4x4 accessories available to increase storage and utilisation of your dual cab for off-road adventures and touring.
.	OZROO Unique Tubrack Design To Suit Multiple Mounting Options OZROO pride themselves on constant improvement. It was understood that the mounting is not always the same, maybe you have a rollercover? Maybe you want to mount it to a flat tray? OZROO heard you and made the unique, modular, feet which suit all solutions! Now you can bolt onto all flat rollercovers without issue. Want to mount hard to your tub? No problems, the unique feet inserts allow the verticle mount to be inserted.
HALF HEIGHT, FULL HEIGHT, NARROW?! WHICH DO I NEED: Half height - Shown on the grey Ranger below. These are intended to allow items, including roof top tents, to sit in-line with the roof or below. These sit ~230mm above your tub side wall at their lowest point. Full height - Shown on the gold Ranger Wildtrak above. These are intended to maximize tub storage and create a platform at or just below the roof height. These sit ~400mm above the tub side wall at their lowest point. Extra high These are intended to maximize height to create a platform above the roof height. These sit ~600mm above the tub side wall at their lowest point. Narrow Rack - These are intended for customers who would like to keep their sports bars. These are a full height rack with a more angular setup. Extra Cab - These are intended for individuals with an extra or single cab tub. These are typically too long for a dual cab. Made in 4mm steel rather than 3mm steel these are heavy duty intended for the wide span. Half Cab - These are intended for individuals who want a shorter rack to minimize space used in the tub, whilst also creating storage.

New Generation

New Design

Sleek, smooth, clean!

All the learnings from generation 1 tub racks, incorporated for an overall better design!
Including GRAB HANDLES!!

Maintaining all the specifications you loved about the original;

Easy DIY direct mount install
Internal cross member bars for extra support and load carrying capacity
Modular height and width to ensure perfect fitment on most Utes
Black powder coated for longer durability
High quality stainless steel hardware and allen key for easy installation
High quality LED lights installed ready for extra reversing or camp lights

Adjustable Light Mounting Options

Included* Adjustable mounted LED lights

Choose to run lights, or not!
Maintain maximum clearance, or mount the lights on the internal bars for various light angle options!

Lights available seperately if you would like to run 4x on the one rack it all mounts up!

*Included except for "NO LIGHT OPTIONS"

Flat Mount Or Side Mount, The choice is yours!

You asked, we listened, hidden bolt attachments intenal to the feet! Clean and smooth outside.

Flat mount option ready to mount for most rollercovers on the market, or flat mount to the side of your tub.

Optional Side of Tub Mount Attachment! Want to internally mount to hide the bolts? No problems, bolt the included attachment in and away you go!

OzRoo, For Australian Conditions - Proudly distributed by Canyon Offroad
*Please note the weight rating is contingent on correct installation at a non-maximum height. The weight rating is slightly degraded at maximum height.

Technical Specifications:

Full height racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 590mm above tub
Minimum height 400mm
Includes two side bars.

Half height racks:
Length of the rack - 126cm
Width of the rack - 145cm-180cm
50mm distance between adjustment holes.
3 holes of adjustment on the lower arm
3 holes of adjustment on the upper arm.
Maximum height 350mm above tub
Minimum height 200mm
Includes one side bar.

Narrow style rack
Length of the rack - 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra long length racks
Length of the rack - 150cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

3/4 cab length racks
Length of the rack - 110cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Half cab length racks
Length of the rack - 95cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
6 holes of adjustment on the lower arm
6 holes of adjustment on the upper arm.
Maximum height 650mm above tub
Minimum height 400mm
Includes two side bars.

Extra high racks:
Length of the racks: 126cm
Width of the racks: 145cm-180cm
50mm distance between adjustment holes.
8 holes of adjustment on the lower arm
8 holes of adjustment on the upper arm.
Maximum height 790mm above tub
Minimum height 600mm
Includes two side bars.

Instructions

Full Height Tub Rack - Install Instructions (PDF)

Half Height Tub Rack - Install Instructions (PDF)

OZROO TUB RACK for Ford Courier (1996-2006)

RATED TO 400kgs - PERFECT FOR A ROOF TOP TENT!

OZROO Unique Tubrack Design To Suit Multiple Mounting Options

Technical Specifications:

Instructions

Ford Courier

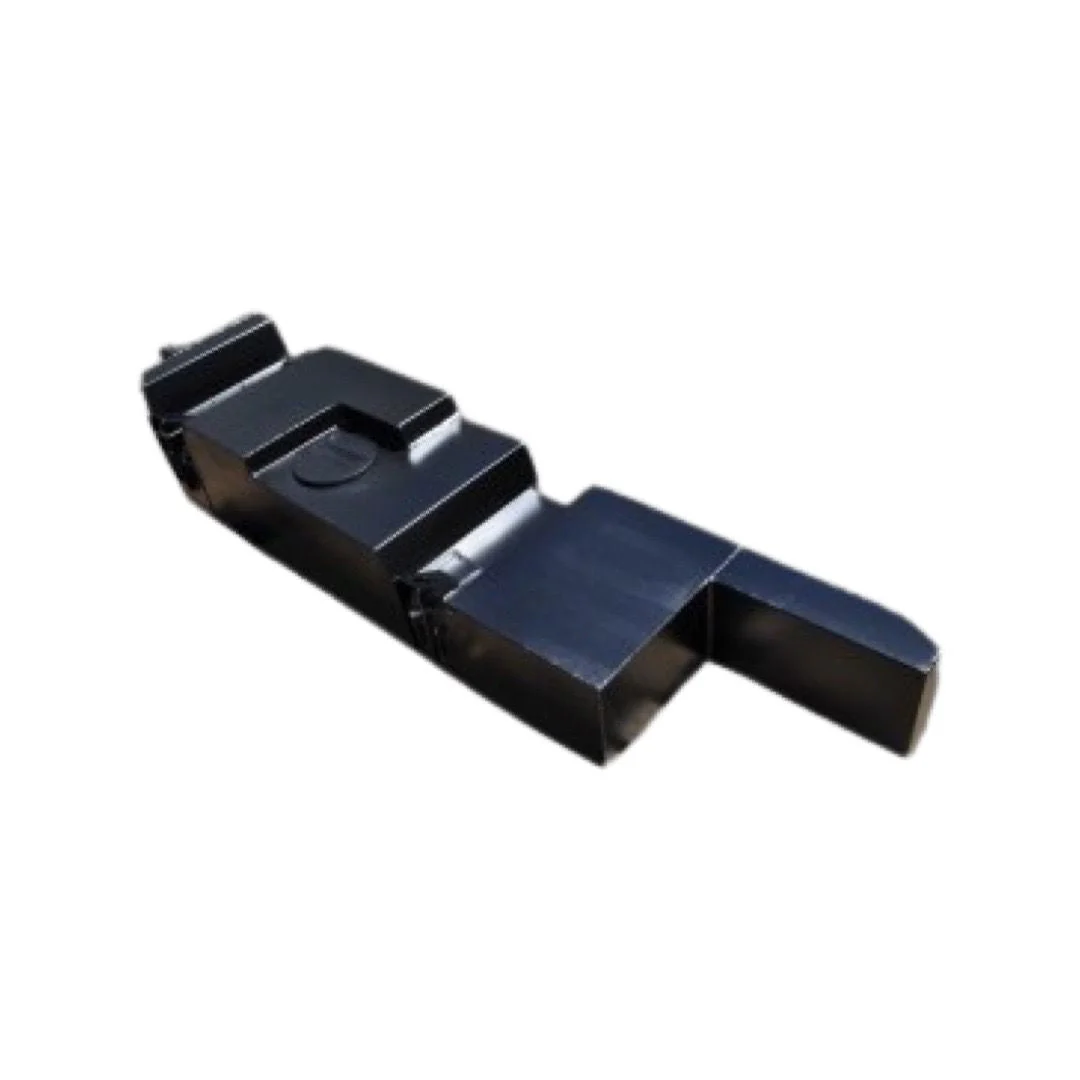

Ford Courier (1996-1998) 130L Outback Accessories Long Range Fuel Tank

Ford Courier (1999-2011) PE to PK 130L Outback Accessories Long Range Fuel Tank

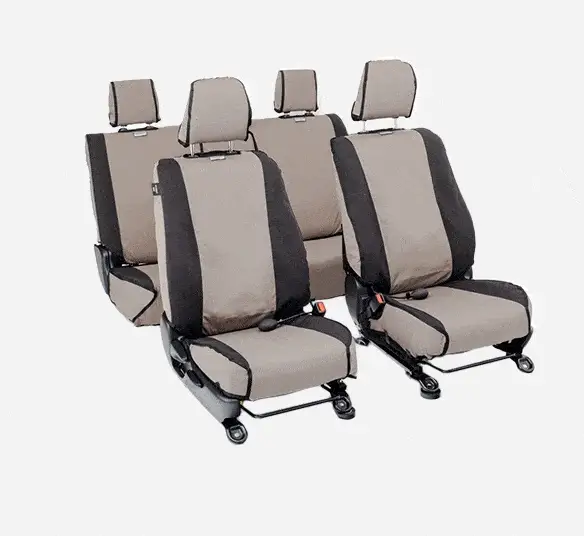

Ford Courier (1999-2007) PH/PG/PE MSA Seatcovers
