Ineos Grenadier (2023-2025) 68LT AUXILIARY Brown Davis Long range Fuel Tank (SKU: IG23A1)
Description
68LT AUXILIARY Brown Davis Long range Fuel Tank (SKU: IG23A1)
Introducing the Ultimate Solution for Extended Adventures: Brown Davis 68 Litre Auxiliary Long Range Fuel Tank for the INEOS Grenadier! Gone are the days of worrying about frequent refuelling stops. With the Brown Davis auxiliary tank, you’ll elevate your vehicle’s standard fuel capacity from 90 litres to an astonishing 158 litres!
Key Features of a Brown Davis Auxiliary Fuel Tank:
- Tapered approach angle to reduce frontal impact and improve ramp over clearance
- Longitudinal and lateral baffling system to prevent fuel slosh and to strengthen tank structure
- Gusseted brackets with double thickness pads to spread tank mounting loads
- Fuel pump sender flange designed to re-use the vehicle’s original equipment
- Swirl pot designed to carrel fuel around the pick-up point
- Roll over check valve and expansion box for fuel expansion and venting
- Fast fill breather for rapid filling and to reduce bowser shut off
- Filler tube, connects to vehicles original filling point
- Cushion clamps to retain fuel lines to prevent damage and kinking
- Magnetic drain plug, horizontal and flush mounted to prevent damage
(IG23A1)
Specifications
PART NUMBER: IG23A1
TANK TYPE: AUXILIARY
CAPACITY: 68 LITRE
FILLER POINT: Y FILLER (NEW FAST FLOW FILLER SUPPLIED)
FUEL SUPPLY METHOD: TRANSFERS TO MAIN TANK

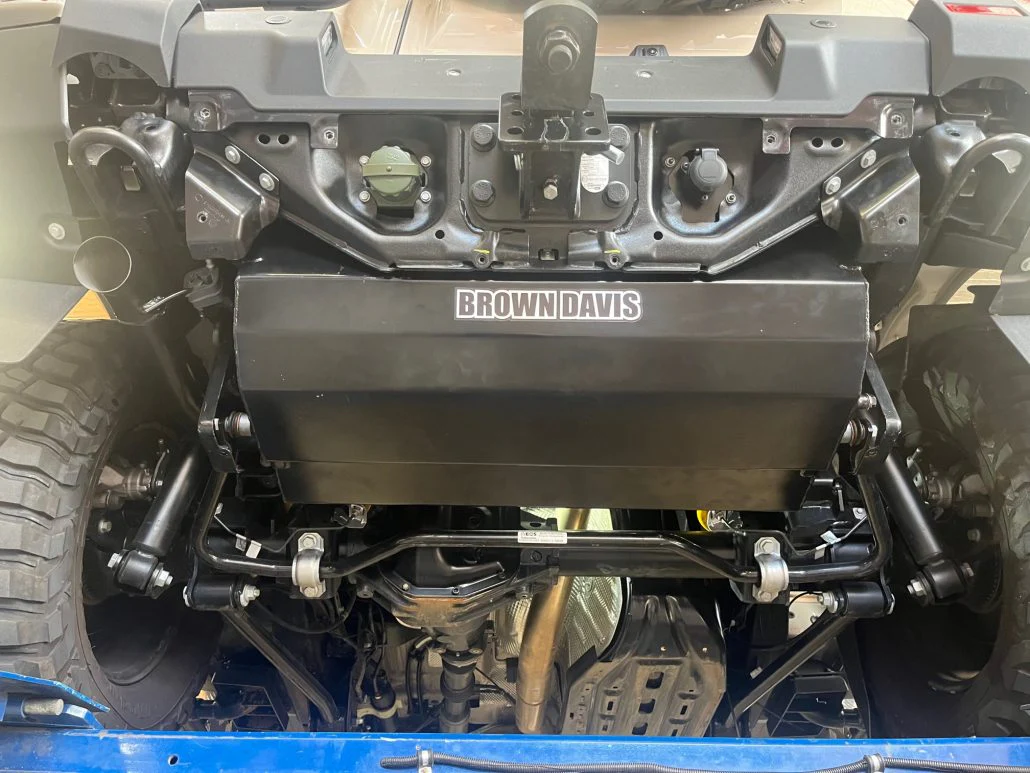

TANK LOCATION: BEHIND REAR AXLE
FITTING TIME: 6 Hour/s
MODIFICATIONS: REMOVE REAR MUFFLER- NEW TIP SUPPLIED
Stock Updated: 2026-05-01
As demand can change quickly, displayed availability is subject to change. Once your order is placed, our team will confirm your ETA within 48 hours.
Where no arrival date is shown above, or incoming stock has been allocated, the item is available to order with a current lead time of approximately 10–12 weeks.
If stock is unavailable at your nearest location, we can arrange a transfer for your convenience. A flat freight charge of $299 applies.
This is not quoted on checkout and will need to be added on, please contact us to do this.
Perth stock is not kept at Bibra Lake HQ but another offsite warehouse, for pickups tanks are required to be transferred in with a 24-48 hour delay
Please note that our long-range tank range is manufactured to order to ensure the highest level of fitment and quality. As a result, these orders cannot be cancelled once confirmed.
| STOCK LOCATION | STOCK AVAILABILITY |
|
Stock Melbourne (Supplying VIC/NSW/SA/NT/TAS) |
In Stock Next Stock Due: 2026-05-30 |
| Stock Perth | In Stock Next Stock Due: 2026-05-30 |
| Stock Brisbane | In Stock Next Stock Due: 2026-05-30 |
SHIPPING POLICY:
Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout.
We can provide door to door delivery options for an extra fee, Please contact our sales team on (08) 6117 3837 or [email protected] within 24hrs of the order being placed if you would like us to quote this option for you.
