Toyota Landcruiser 75 Series (1984-1999) 170Lt STEEL Brown Davis Replacement Fuel Tank for FJ/FZ/HJ/HZJ75-UTE & TRAY- MODELS WITH REAR TANK (SKU: TL75R2)
Toyota Landcruiser 75 Series (1984-1999) 170Lt STEEL Brown Davis Replacement Fuel Tank for FJ/FZ/HJ/HZJ75-UTE & TRAY- MODELS WITH REAR TANK (SKU: TL75R2)

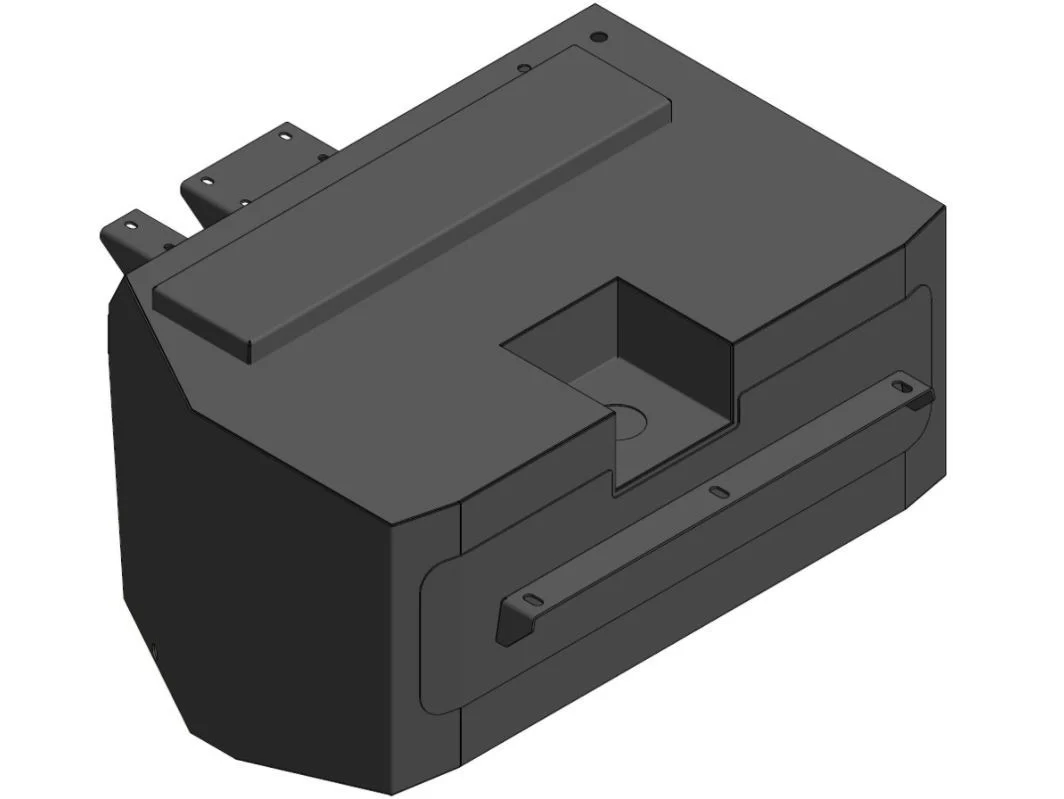

170 LITRE STEEL REPLACEMENT LONG RANGE FUEL TANK - TL75R2
This tank is designed as a full replacement fuel tank with a much higher fuel payload than the standard tank. The tank takes the place of the factory fitted fuel tank, and as such are a direct bolt in solution for increasing fuel capacity.
Key Features of a Brown Davis Replacement Fuel Tank
- Tapered approach angle to reduce frontal impact and improve ramp over clearance
- Longitudinal and lateral baffling system to prevent fuel slosh and to strengthen tank structure
- Gusseted brackets with double thickness pads to spread tank mounting loads
- Fuel pump sender flange designed to re-use the vehicle’s original equipment
- Swirl pot designed to carrel fuel around the pick-up point
- Roll over check valve and expansion box for fuel expansion and venting
- Fast fill breather for rapid filling and to reduce bowser shut off
- Filler tube, connects to vehicles original filling point
- Cushion clamps to retain fuel lines to prevent damage and kinking
- Magnetic drain plug, horizontal and flush mounted to prevent damage
TANK LOCATION: REPLACES 90LT STD REAR TANK
(TL75R2)
Please Note: Please note, we keep many of these in stock but cannot keep all tanks. Generally these tanks are made to order with a current lead time of approximately 10–12 weeks. Please call if you want to check leadtimes.
Please note that our long-range tank range is manufactured to order to ensure the highest level of fitment and quality. As a result, these orders cannot be cancelled once confirmed.
SHIPPING POLICY:
Due to this item exceeding 30kgs we will deliver it to your closest depot unless a COMMERCIAL ADDRESS WITH A FORKIFT is provided on checkout.
We can provide door to door delivery options for an extra fee, Please contact our sales team on (08) 6117 3837 or [email protected] within 24hrs of the order being placed if you would like us to quote this option for you.
